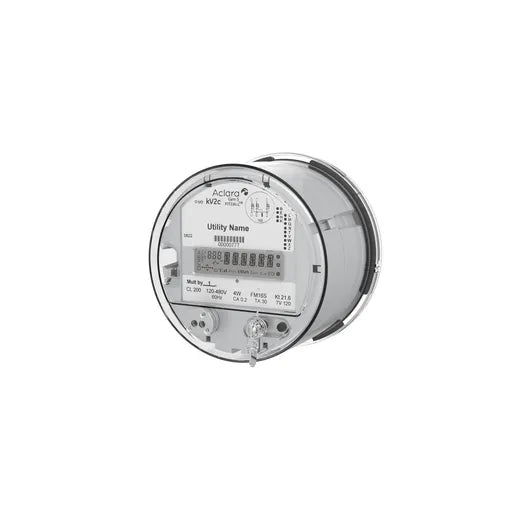

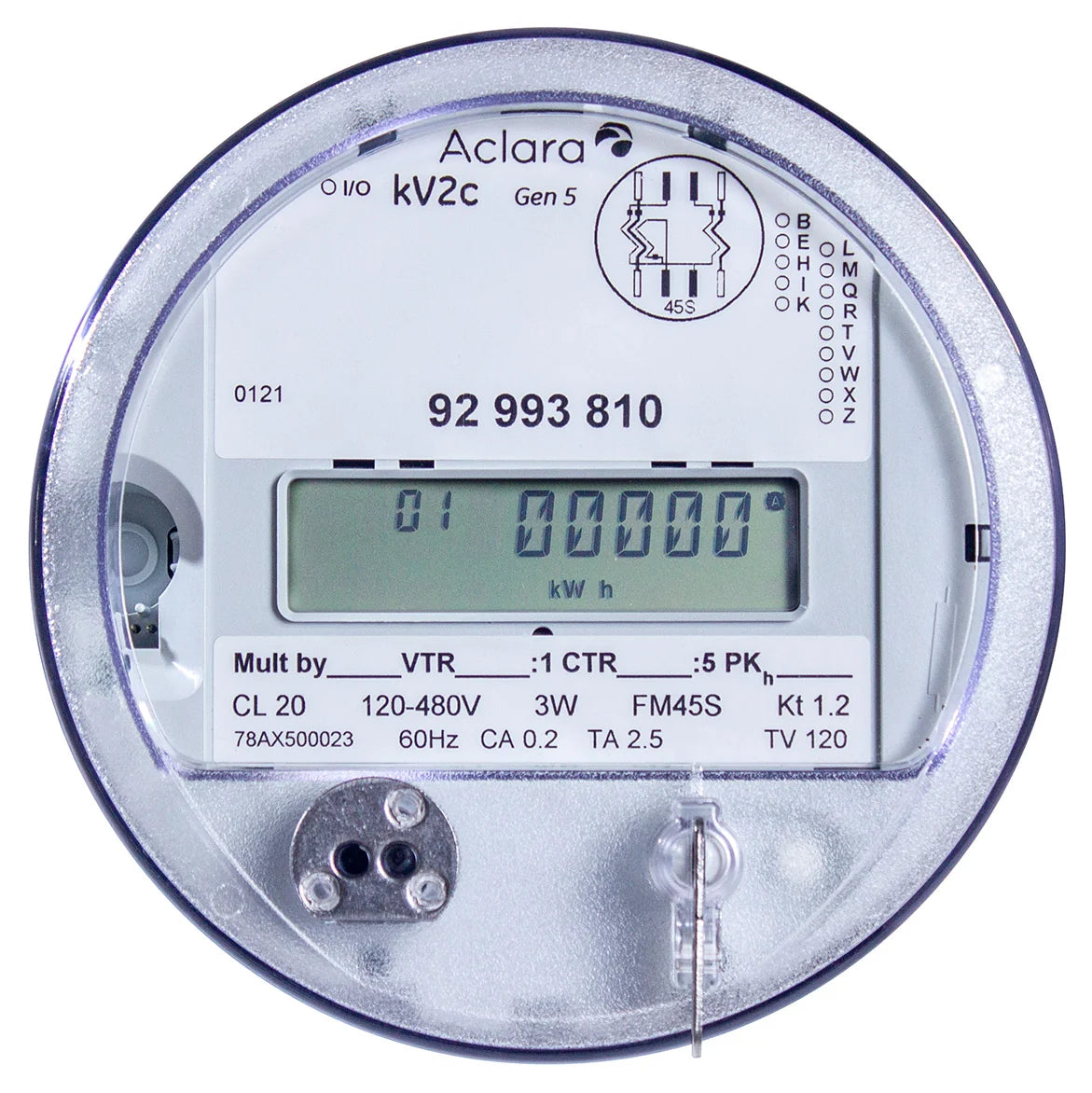

Aclara kV2c Gen 5 Meter | GE-Aclara
Model: Aclara kV2c Gen 5
Part Number: GE-KV2C
9S Wiring Diagram Page
Direct Link
The Aclara kV2c Gen5 meter is an advanced metering solution optimized for commercial and industrial applications. It exceeds traditional revenue metering by offering real-time instrumentation, power quality monitoring, and accurate cost of service measurements. The meter is adaptable for various requirements, from simple energy rates to complex service quality and load analysis on single or polyphase circuits. Its robust design includes diverse integrated AMI options, advanced configuration for specific data needs, and optional functions like reactive power measurement, power quality, event logging, and a remote disconnect option for enhanced operational efficiency.
Experience the Next-Generation Metering with Aclara kV2c Gen5 - Precision, Efficiency, and Adaptability for Your Industrial and Commercial Needs.
- Advanced metering solution
- Industry-proven reliability
- Cost-efficient and customizable design
- Robust testing and diverse AMI options
- Supports up to 20 channels of load profile data
- Includes remote disconnect (RD) for operational efficiency
- Features like reactive power measurement and power quality logging
Specifications
General
Application:
- Commercial
Compatibility:
- Aclara TWACS
- Aclara RF
- Aclara Cellular
- Itron GenX
- Sensus Flexnet
- Trilliant SecureMesh
- Verizon Gridwide
- Nexgrid IntelaMeter
- Nighthawk Adaptiv Link
- Tantalus TruEdge
- Easymetering Cellular
Ingress Protection:
- NEMA 3R
Operating Temperature:
- -40°C to +85 °C
- <95% relative humidity
Electrical Ratings
Electrical Ratings:
- Voltage: 120V-480V Auto ranging
- Current: Class 20, 200, and 320 A
- Frequency: 50 or 60 Hz
- Accuracy: Exceeds +/- 0.2% Certified Class Accuracy Typical Watt Loss: 0.8W @ 120V / 1.7W @ 480V
Certifications And Compliance
Industry Standard(s):
- ANSI C12.1, C12.10, C12.16, C12.18. C12.19, C12.20
- FCC Class B emissions
- UL2735 (option)
